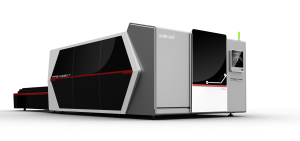

Close Fiber Laser Cutting Machine



Safety and No Pollution
  • With a fully enclosed design;
  • The observation window adopts an European CE Standard laser protective glass;
  • The smoke produced by cutting can be filtrated inside,it’s non-polluting and environmentally friendly;
  • The weight of machine is 85000kg

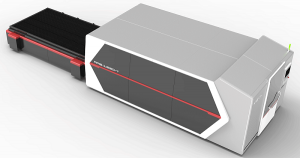

Exchanging Platform
  • It adopts an up and down exchange platform;
  • The converter is responsible for controlling the exchanging motor;
  • The machine is able to finish the platform exchanging within 15s;

3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Swiss Raytools cutting head Without manual operation, it can focus automatically

Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

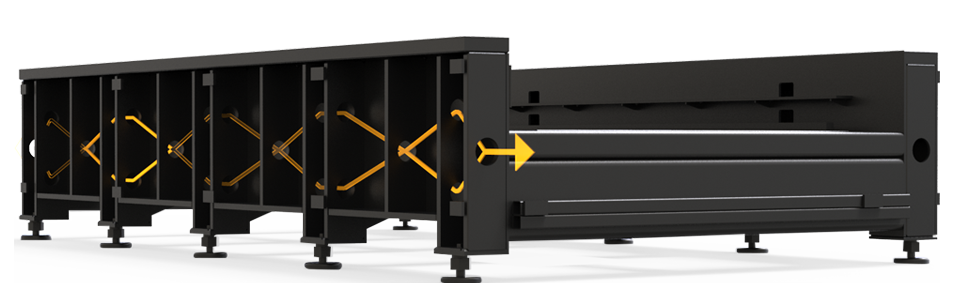

The Segmented Rectangular Tube Welded Bed
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

  •   High strength, stability, tensile strength, ensuring 20 years of use without distortion;
  •   Thickness of rectangular pipe wall is 10mm,and weights 8500 kg.

Japan SMC Electric Proportional Valve
  • The compact and lightweight structure lightens the weight of the Z-axis and increases the running speed and acceleration of the equipment to a greater extent.
  • The power is only 4W, which is more energy-efficient and saves the cost of customer use.

Japan Yaskawa Motor Driver
  • Yaskawa drive system can be used in combination with the motion control solution provided by the automation control software.
  • Yaskawa drive system is more suitable for high dynamic multi-axis motion drive.

Taiwan YYC/KH High Precision Rack
  • The grinding rack with brand new precision level meets the demand of energy conservation because of less friction loss.
  • Atlanta rack has smaller total pitch error per meter, therefore the reduction of total pitch error in whole axis improves the accuracy of the entire device.

Japan Shimpo Decelerator
  • Convenient, safe and quick. Use standardised flange interface. Provides a faster installation for reducer’s driving units and safety.
  • Extremely high load capacity. Due to its high anti-tilt torque, the reducer is able to bear extremely high axial vector and radial force. It offers a larger load in order to provide a greater acceleration for the device.

Germany Rexroth or Taiwan Hiwin Guideway
  • The high carrying capacity and long lubrication interval of four main carrying directions makes a longer working life of the rack.
  • Super sliders provide an error compensation on height installation which gives a higher accuracy to the device.

Transmission and Precision
KRRAS Fiber Laser Cutting Machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Japan Shimpo reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.

How to Choose

Technical Parameters

Industry Applications
RAS-1530-T fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing.
Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
